Technical Note No. 046

Replacing Aperture on POM to reduce light from lamp

Date: 4 April 2018

Authors: Craig Williford

Overview:
This tech note describes the procedure for reducing the photodiode voltage on a POM
by replacing the light aperture with a smaller one on the lamp side of the measurement
cell.

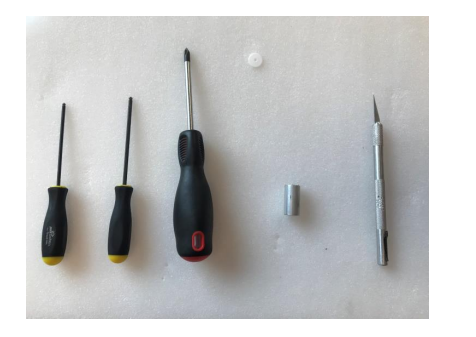

Tools needed:

• Philips Screwdriver
• 7/64” Hex Ball end screwdriver
• 3/32” Hex Ball end screwdriver
• Exacto knife or similar (optional)



Procedure:

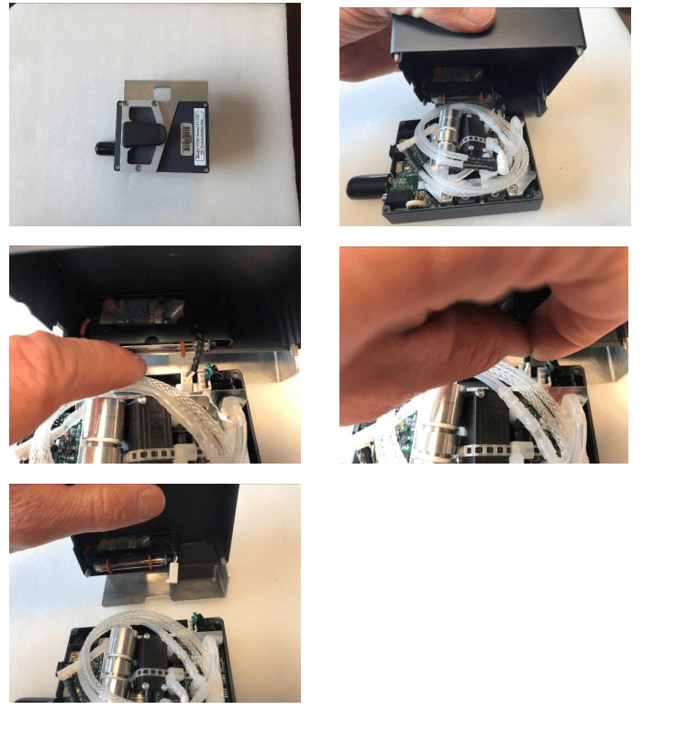

1.0 Remove cover

• Using the 7/64” hex ball end screwdriver, remove 4 hex nuts on back of POM.
• Tilt back cover up as shown and unplug lamp.

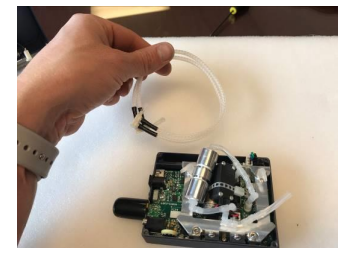

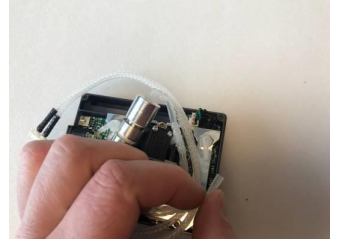

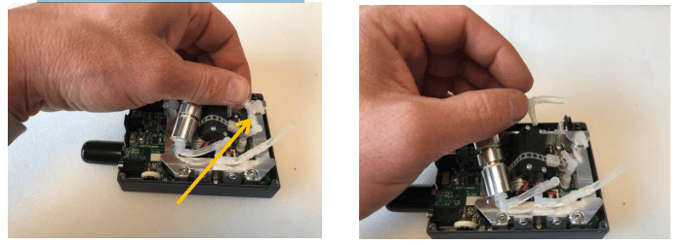

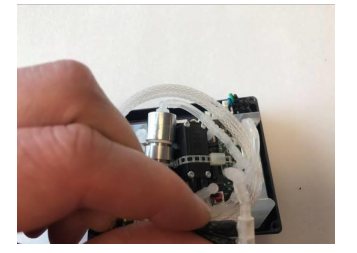

2.0 Remove Nafion

Disconnect valve end of Nafion

• Disconnect cell end of Nafion



• Disconnect cell exhaust line


• Pull out coil of Nafion

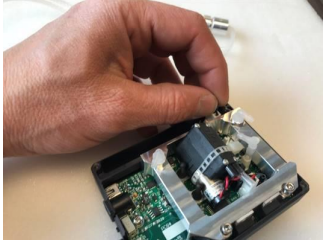

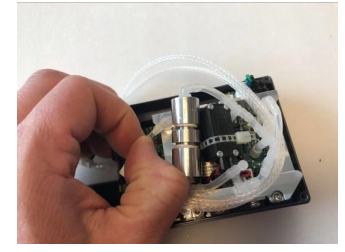

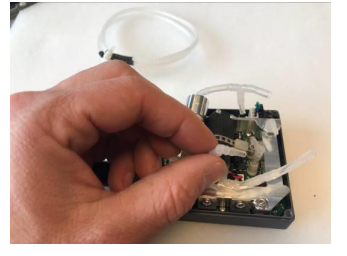

  3.0 Remove Scrubber
•  Disconnect normally open side of valve

• Disconnect inlet connection

• Disconnect normally closed side of valve


Pull out scrubber assembly

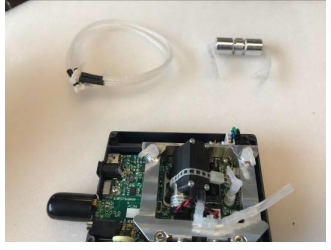

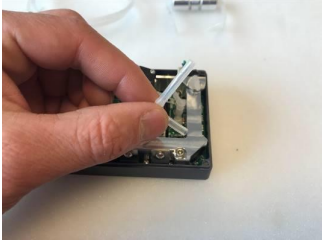

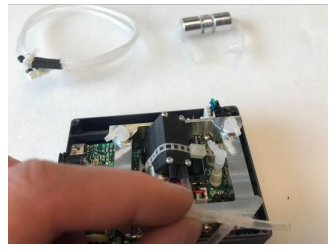

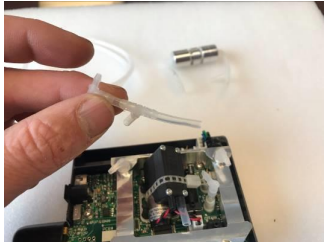

4.0 Remove pump connection

• Disconnect tubing from pressure sensor

• Disconnect elbow from pump

• Pull out tubing

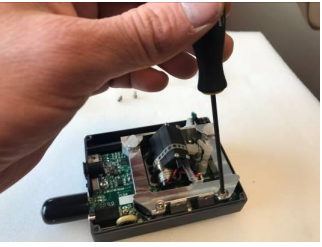

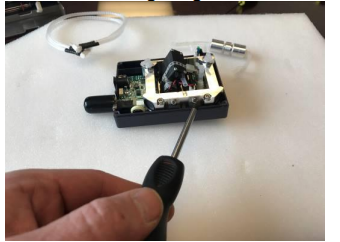

  5.0 Remove cell mount screws
•  Use Philips head screwdriver to remove two screws holding temperature sensor
  and voltage regulator to cell

• Use 3/32” hex ball screwdriver to remove three bolts holding cell to enclosure

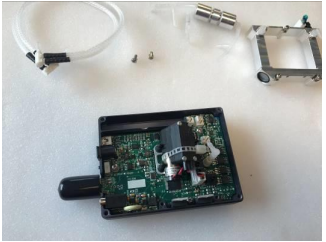

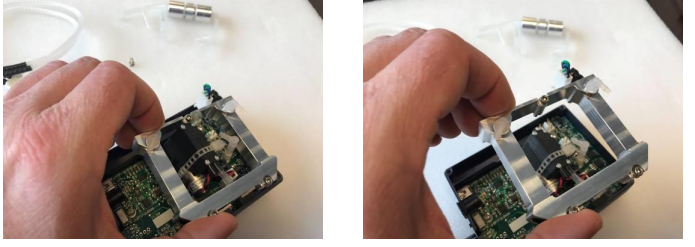

  6.0 Remove cell
• Carefully disconnect the photodiode from the pcb

• Pull cell out

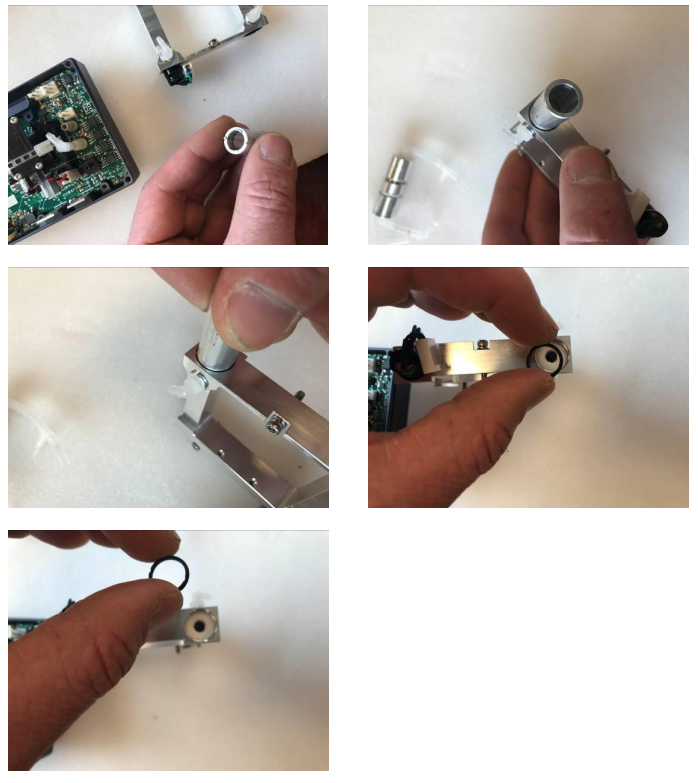

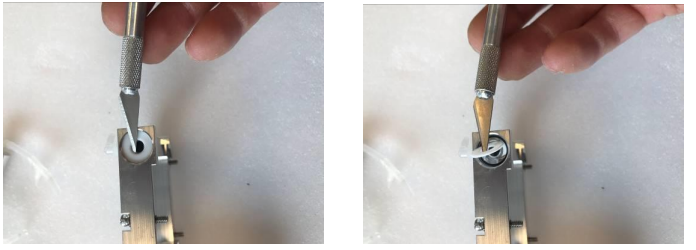

  7.0 Remove window retaining ring

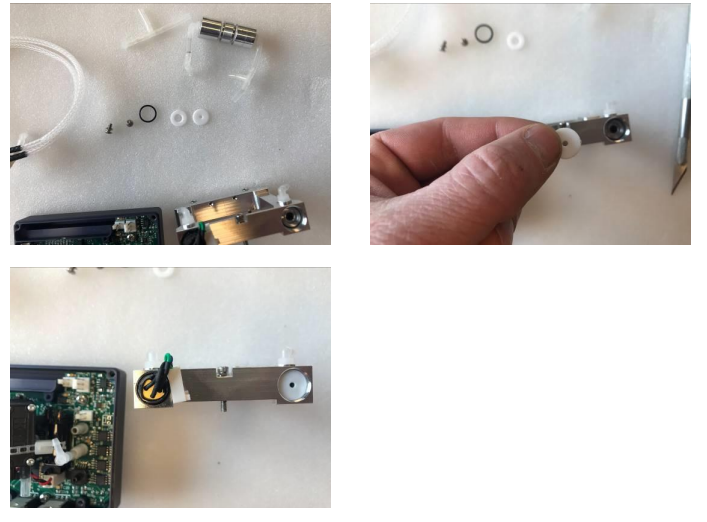

  8.0 Remove aperture (if aperture is in place)



  9.0 Replace new Aperture


  10.0 Assemble in reverse order
